Soot & Ash Doors

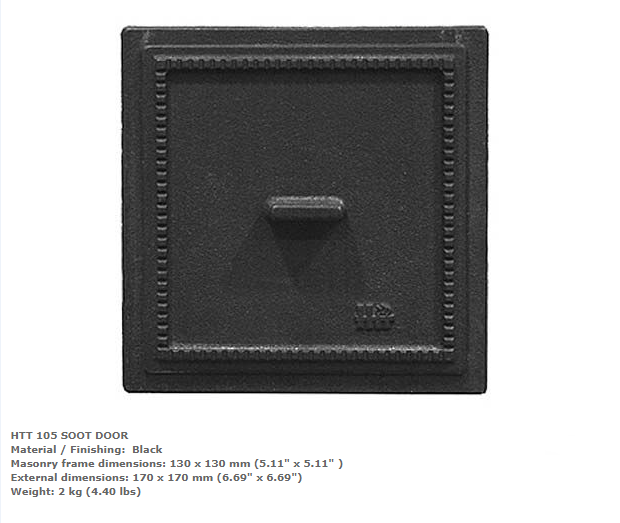

HTT 105 SOOT DOOR
Material / Finishing: Black
Masonry frame dimensions: 130 x 130 mm (5.11″ x 5.11″ )
External dimensions: 170 x 170 mm (6.69″ x 6.69″)
Weight: 2 kg (4.40 lbs)

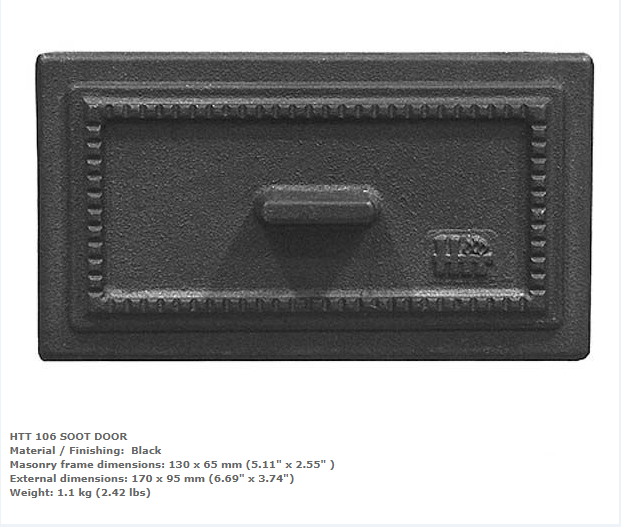

HTT 106 SOOT DOOR
Material / Finishing: Black
Masonry frame dimensions: 130 x 65 mm (5.11″ x 2.55″ )
External dimensions: 170 x 95 mm (6.69″ x 3.74″)
Weight: 1.1 kg (2.42 lbs)

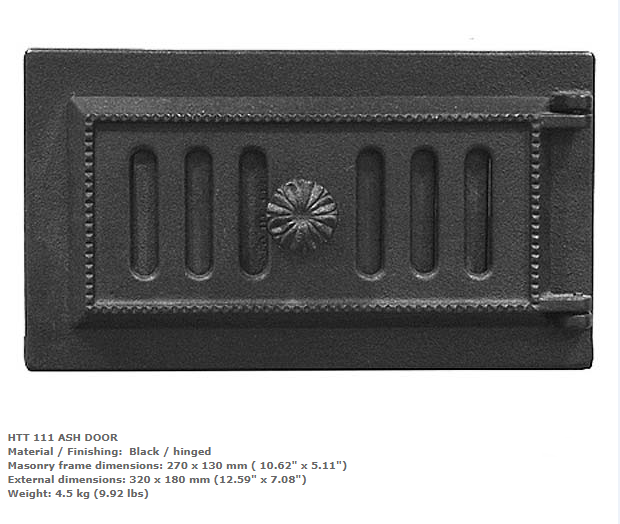

HTT 111 ASH DOOR
Material / Finishing: Black / hinged
Masonry frame dimensions: 270 x 130 mm ( 10.62″ x 5.11″)
External dimensions: 320 x 180 mm (12.59″ x 7.08″)
Weight: 4.5 kg (9.92 lbs)

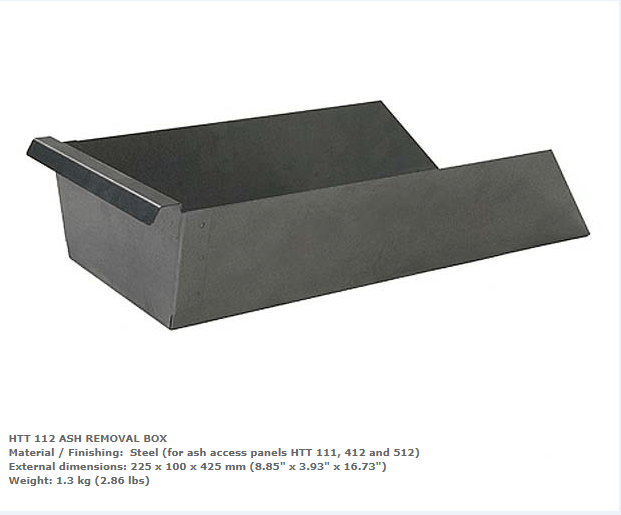

HTT 112 ASH REMOVAL BOX
Material / Finishing: Steel (for ash access panels HTT 111, 412 and 512)
External dimensions: 225 x 100 x 425 mm (8.85″ x 3.93″ x 16.73″)
Weight: 1.3 kg (2.86 lbs)

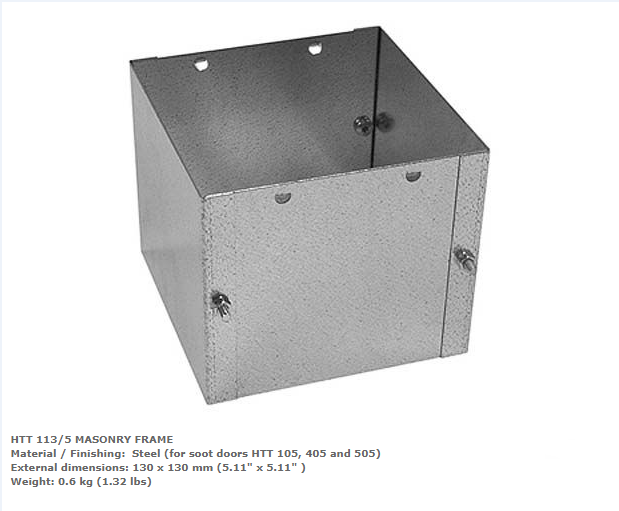

HTT 113/5 MASONRY FRAME
Material / Finishing: Steel (for soot doors HTT 105, 405 and 505)
External dimensions: 130 x 130 mm (5.11″ x 5.11″ )
Weight: 0.6 kg (1.32 lbs)

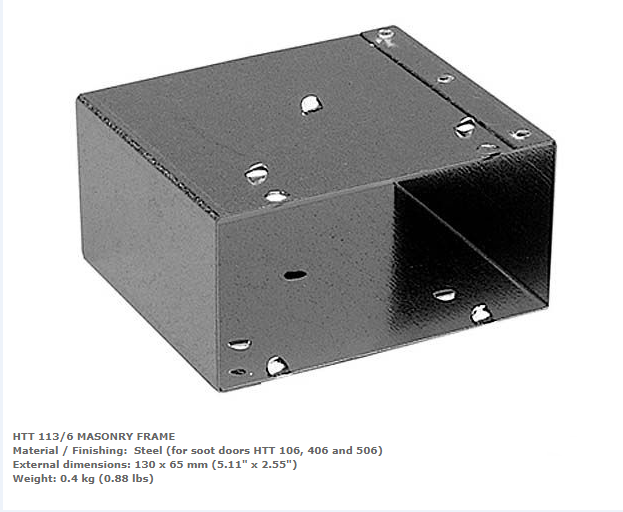

HTT 113/6 MASONRY FRAME
Material / Finishing: Steel (for soot doors HTT 106, 406 and 506)
External dimensions: 130 x 65 mm (5.11″ x 2.55″)
Weight: 0.4 kg (0.88 lbs)

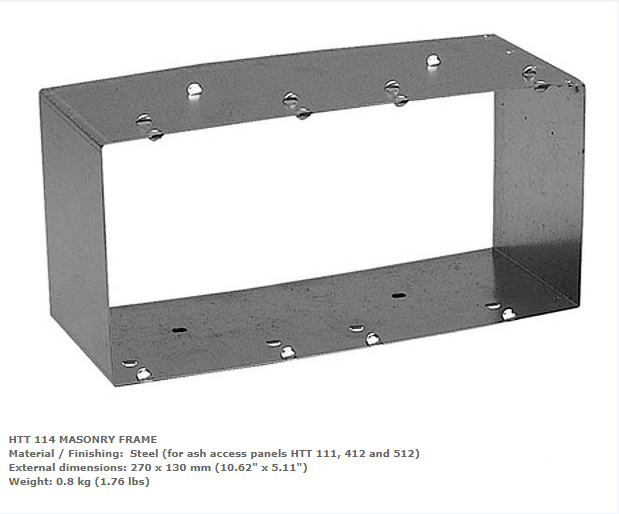

HTT 114 MASONRY FRAME
Material / Finishing: Steel (for ash access panels HTT 111, 412 and 512)
External dimensions: 270 x 130 mm (10.62″ x 5.11″)
Weight: 0.8 kg (1.76 lbs)

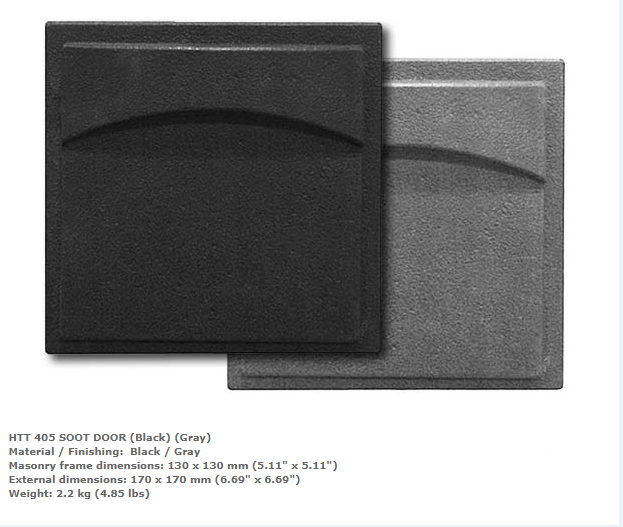

HTT 405 SOOT DOOR (Black) (Gray)
Material / Finishing: Black / Gray
Masonry frame dimensions: 130 x 130 mm (5.11″ x 5.11″)
External dimensions: 170 x 170 mm (6.69″ x 6.69″)
Weight: 2.2 kg (4.85 lbs)

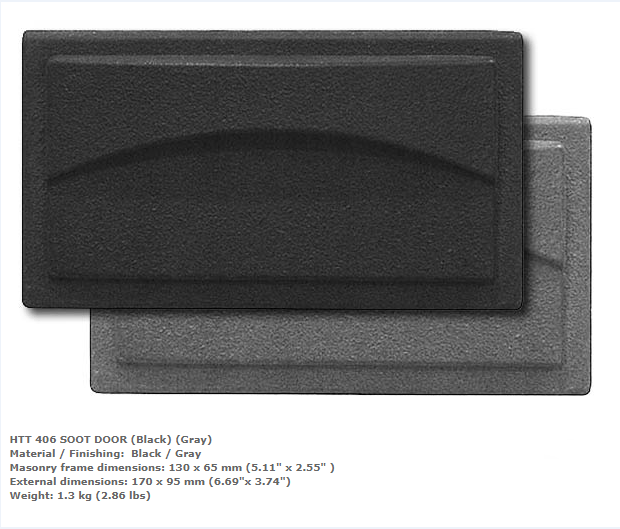

HTT 406 SOOT DOOR (Black) (Gray)
Material / Finishing: Black / Gray
Masonry frame dimensions: 130 x 65 mm (5.11″ x 2.55″ )
External dimensions: 170 x 95 mm (6.69″x 3.74″)
Weight: 1.3 kg (2.86 lbs)

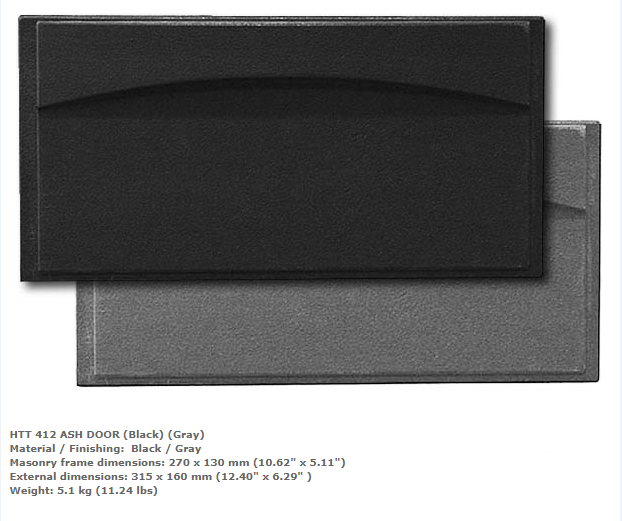

HTT 412 ASH DOOR (Black) (Gray)
Material / Finishing: Black / Gray
Masonry frame dimensions: 270 x 130 mm (10.62″ x 5.11″)
External dimensions: 315 x 160 mm (12.40″ x 6.29″ )
Weight: 5.1 kg (11.24 lbs)

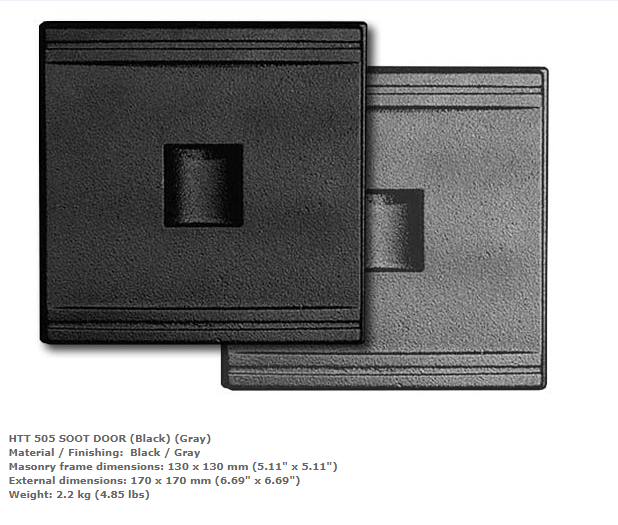

HTT 505 SOOT DOOR (Black) (Gray)
Material / Finishing: Black / Gray
Masonry frame dimensions: 130 x 130 mm (5.11″ x 5.11″)
External dimensions: 170 x 170 mm (6.69″ x 6.69″)
Weight: 2.2 kg (4.85 lbs)

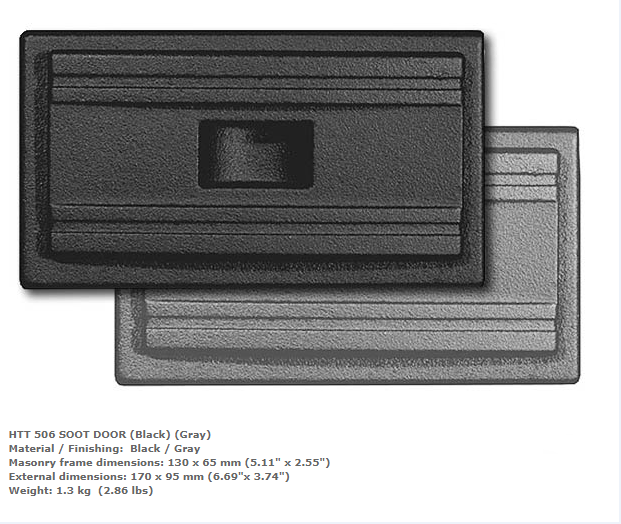

HTT 506 SOOT DOOR (Black) (Gray)
Material / Finishing: Black / Gray
Masonry frame dimensions: 130 x 65 mm (5.11″ x 2.55″)
External dimensions: 170 x 95 mm (6.69″x 3.74″)
Weight: 1.3 kg (2.86 lbs)

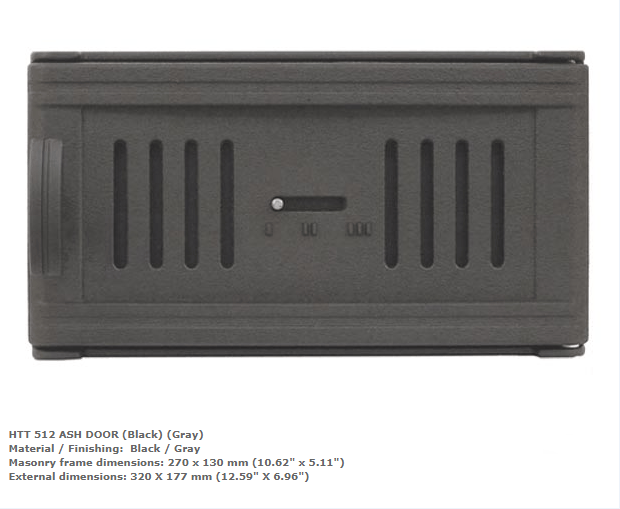

HTT 512 ASH DOOR (Black) (Gray)
Material / Finishing: Black / Gray
Masonry frame dimensions: 270 x 130 mm (10.62″ x 5.11″)
External dimensions: 320 X 177 mm (12.59″ X 6.96″)

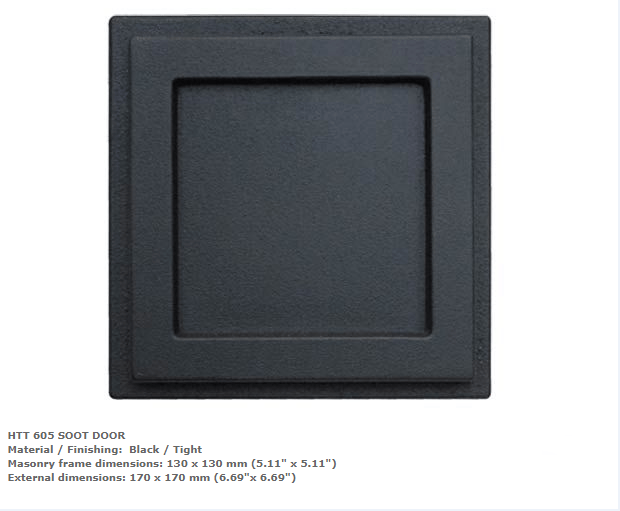

HTT 605 SOOT DOOR
Material / Finishing: Black / Tight
Masonry frame dimensions: 130 x 130 mm (5.11″ x 5.11″)
External dimensions: 170 x 170 mm (6.69″x 6.69″)

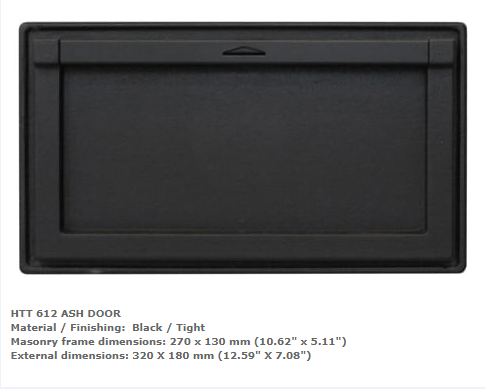

HTT 612 ASH DOOR
Material / Finishing: Black / Tight
Masonry frame dimensions: 270 x 130 mm (10.62″ x 5.11″)
External dimensions: 320 X 180 mm (12.59″ X 7.08″)
