Grates

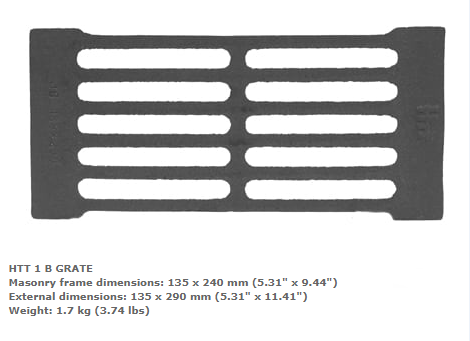

HTT 1 B GRATE
Masonry frame dimensions: 135 x 240 mm (5.31″ x 9.44″)
External dimensions: 135 x 290 mm (5.31″ x 11.41″)
Weight: 1.7 kg (3.74 lbs)

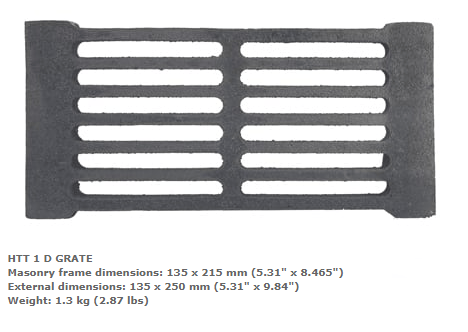

HTT 1 D GRATE
Masonry frame dimensions: 135 x 215 mm (5.31″ x 8.465″)
External dimensions: 135 x 250 mm (5.31″ x 9.84″)
Weight: 1.3 kg (2.87 lbs)

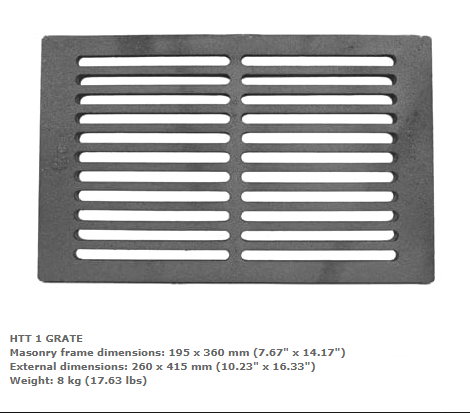

HTT 1 GRATE
Masonry frame dimensions: 195 x 360 mm (7.67″ x 14.17″)
External dimensions: 260 x 415 mm (10.23″ x 16.33″)
Weight: 8 kg (17.63 lbs)

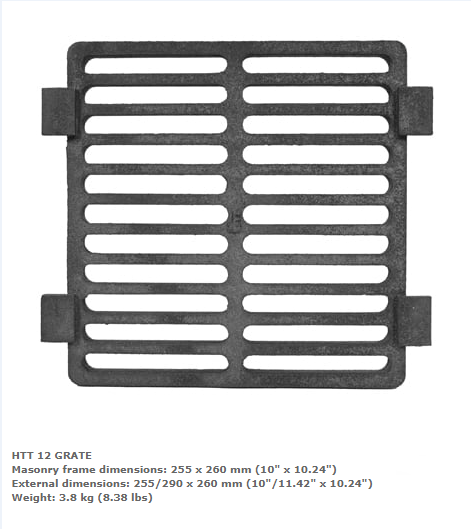

HTT 12 GRATE
Masonry frame dimensions: 255 x 260 mm (10″ x 10.24″)
External dimensions: 255/290 x 260 mm (10″/11.42″ x 10.24″)
Weight: 3.8 kg (8.38 lbs)

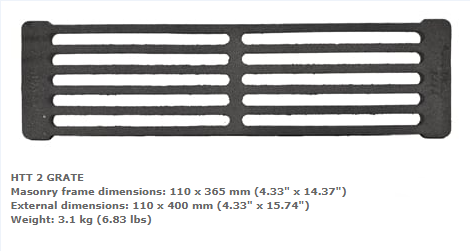

HTT 2 GRATE
Masonry frame dimensions: 110 x 365 mm (4.33″ x 14.37″)
External dimensions: 110 x 400 mm (4.33″ x 15.74″)
Weight: 3.1 kg (6.83 lbs)

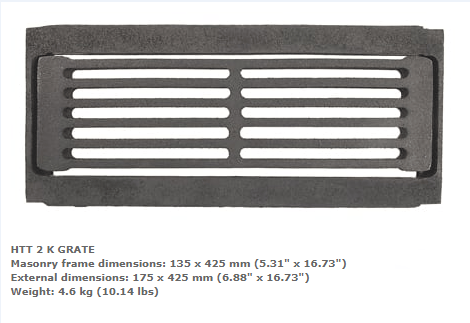

HTT 2 K GRATE
Masonry frame dimensions: 135 x 425 mm (5.31″ x 16.73″)
External dimensions: 175 x 425 mm (6.88″ x 16.73″)
Weight: 4.6 kg (10.14 lbs)

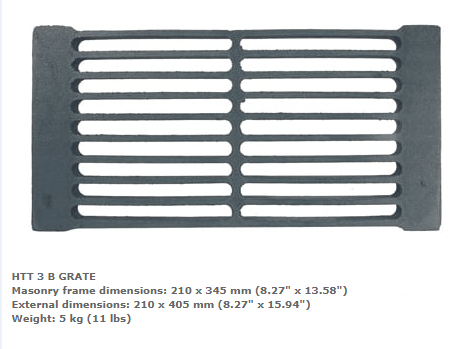

HTT 3 B GRATE
Masonry frame dimensions: 210 x 345 mm (8.27″ x 13.58″)
External dimensions: 210 x 405 mm (8.27″ x 15.94″)
Weight: 5 kg (11 lbs)

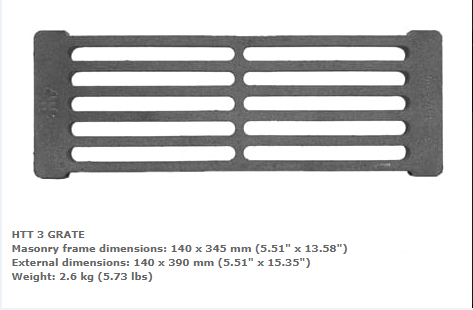

HTT 3 GRATE
Masonry frame dimensions: 140 x 345 mm (5.51″ x 13.58″)
External dimensions: 140 x 390 mm (5.51″ x 15.35″)
Weight: 2.6 kg (5.73 lbs)

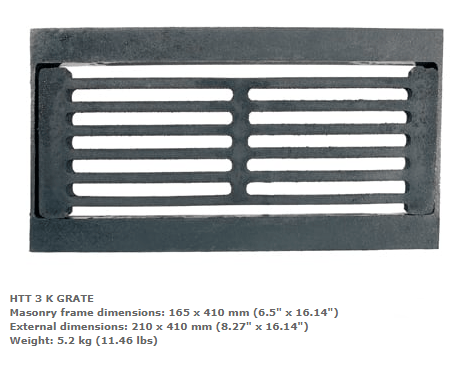

HTT 3 K GRATE
Masonry frame dimensions: 165 x 410 mm (6.5″ x 16.14″)
External dimensions: 210 x 410 mm (8.27″ x 16.14″)
Weight: 5.2 kg (11.46 lbs)

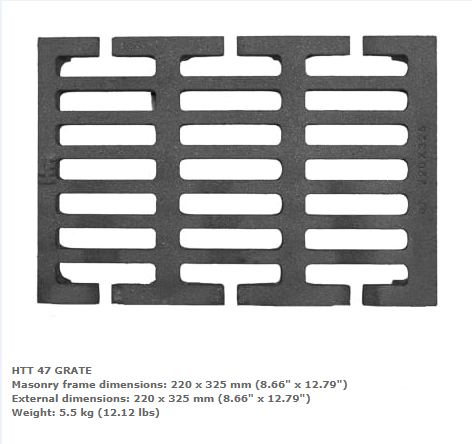

HTT 47 GRATE
Masonry frame dimensions: 220 x 325 mm (8.66″ x 12.79″)
External dimensions: 220 x 325 mm (8.66″ x 12.79″)
Weight: 5.5 kg (12.12 lbs)

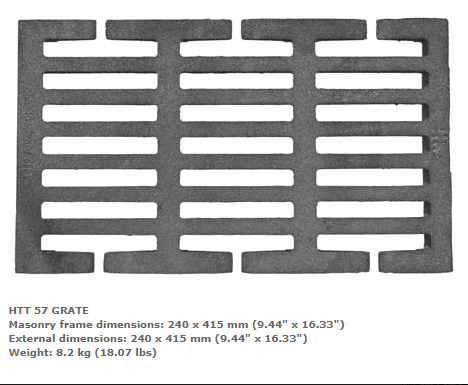

HTT 57 GRATE
Masonry frame dimensions: 240 x 415 mm (9.44″ x 16.33″)
External dimensions: 240 x 415 mm (9.44″ x 16.33″)
Weight: 8.2 kg (18.07 lbs)

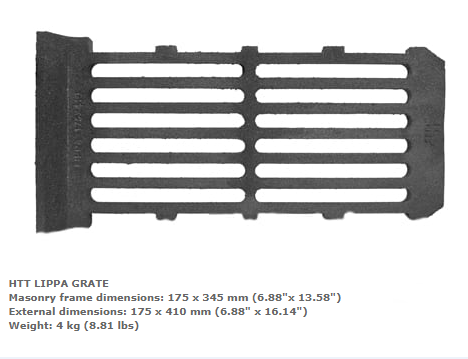

HTT LIPPA GRATE
Masonry frame dimensions: 175 x 345 mm (6.88″x 13.58″)
External dimensions: 175 x 410 mm (6.88″ x 16.14″)
Weight: 4 kg (8.81 lbs)
